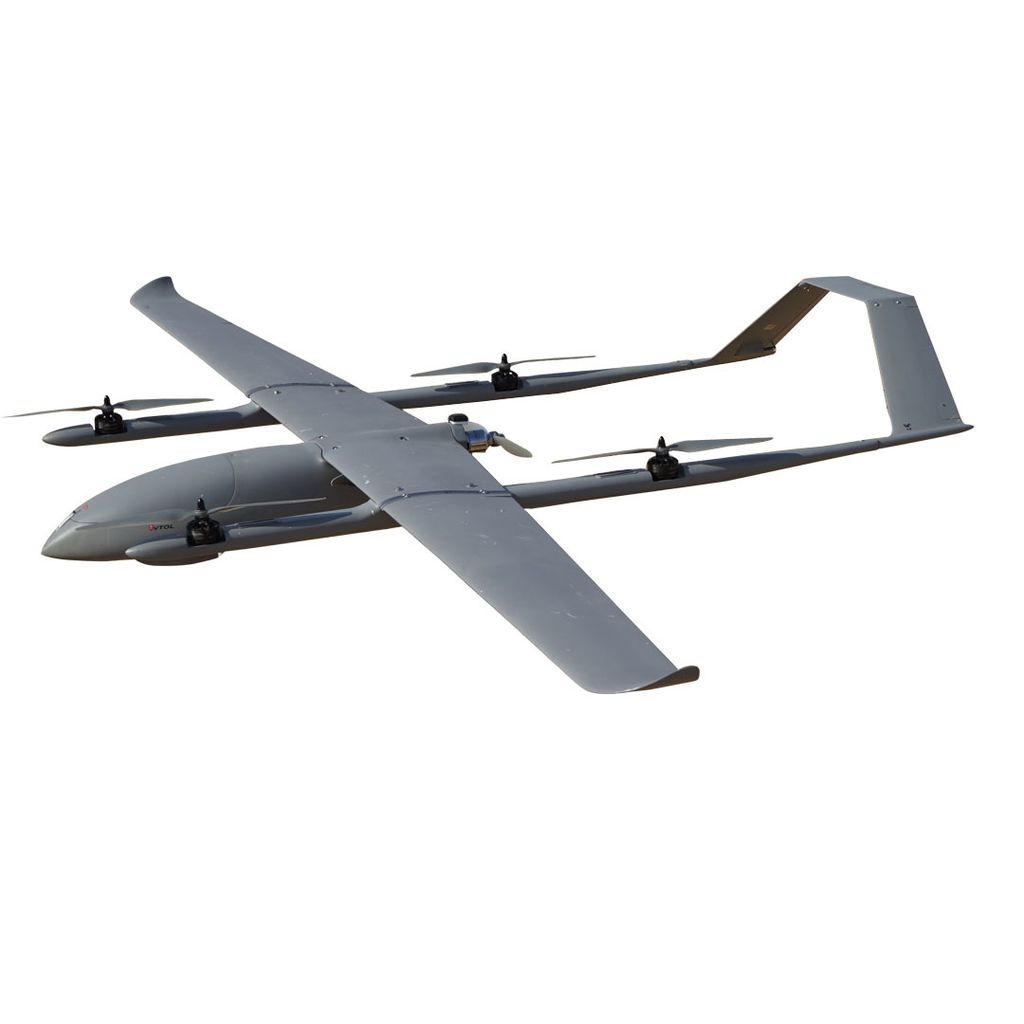

DZ-20 is hybrid UAV between fixed wing airplane and multi-copter, able to take off and land vertically like a multi-copter and transition to efficient and fast forward flight like fixed wing UAV. DZ-20 combines the advantages from fixed wing, such as high speed, long endurance and long flight distance and VTOL features from multi-copters.
Vertical lift motors and rotors are mounted to each wing to provide vertical lift for takeoff and landing. Vertical lift motors are shut off for winged flight and propellers are feathered longitudinally for minimum drag.
DZ-20 require no special launch equipment and do not require runways for launch or landing. Transition to winged flight and VTOL are fully autonomous controlled through JOUAV patent autopilot system. DZ-20 is widely applied for aerial mapping, aerial surveying, aerial surveillance and inspection under extreme terrain, such as between mountain areas, hills, forestry and buildings.
DZ-20 would be ideal choice for professional and industrial aerial UAS services.
Key Features
1. Hybrid configuration design of fixed wing UAV and rotors UAV
2. Featuring long endurance, high speed, long flight range and large payload
3. Vertical takeoff and landing does not requires airport to take off
4. RTK GPS module for high precision vertical and horizontal positioning
5. Fully autonomously flight controlled through professional flight control and GCS system
6. Easy to operate by two to three technicians in one team and fast to assembly and disassembly within 15 mins.
Application
1. Aerial photography and surveying
2. Special field work under extreme condition that neither fixed wing nor rotors UAV reach to
3. Disaster surveillance or resource surveying
